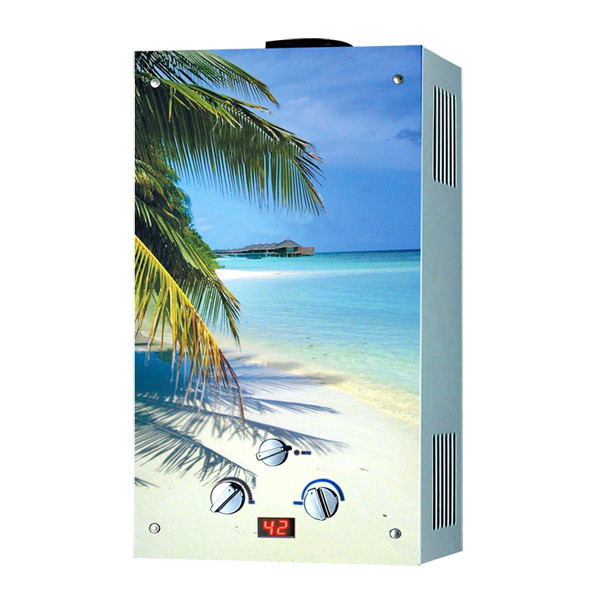

Flue Duct Gas Water Heater JSD-G1

Flue Duct Gas Water Heater JSD-G1

Flue Duct Gas Water Heater JSD-G1

You will instantly enjoy continuous hot shower on demand anytime and anywhere.
-Full tempered glass panelEasy to clean, anti-scratch
-Summer-Winter switchSave gas in summer
-On demand hot waterEndless hot water supply
-Saving energy & moneyIgnition failure protection
-Multiple protectionEnsure your family safety
-Easy to install & useSimple and convenient to operate
Detail Information

Model No.:
JSD-G1
Exhaust Way:
Flue Type
Rated Water Output(△T=25℃) L/Min
6~12L/Min
Gas Type:
LPG:2800Pa/2740Pa
NG:2000Pa/1760Pa/1300Pa
Power Output:
12~40KW
Protective Device:

1. Over heating protetion

2. Anti-frozen device
3. Flame failure safety device
4. Over water pressure protection device
Capacity
6L
7L
8L
Product Size(MM)
440X300X135
490X310X145
520X330X140
Package Size(MM)
520X350X180
600X360X190
640X380X200
Loading Qty.(PCS)20FT/40FT/40HQ
850/1740/2050
675/1395/1640
565/1165/1370
Capacity
10L
12L
ProducT Size(MM)
550X340X140
590X340X140
Package Size(MM)
685X340X215
705X390X200
Loading Qty.(PCS)20FT/40FT/40HQ
500/1040/1220
480/990/1160
Solar Water Heater Partner
Water from Solar Tank below setting temperature (40 ℃), gas water heater works automatically to supply hot water.
Comfort: Continuous Hot Water.
Safety Design: 2 points of temperature control sensor.
Energy saving: Water from Solar Tank over setting temperature (40 ℃), gas water heater stops working.
Capacity
Inlet Water Temperature(℃)
Hot Water Temperature(℃)
Over Temperature Protection(℃)
6L~12L
40
>75
>85
